Detailed Description

Base class for all UI widgets.

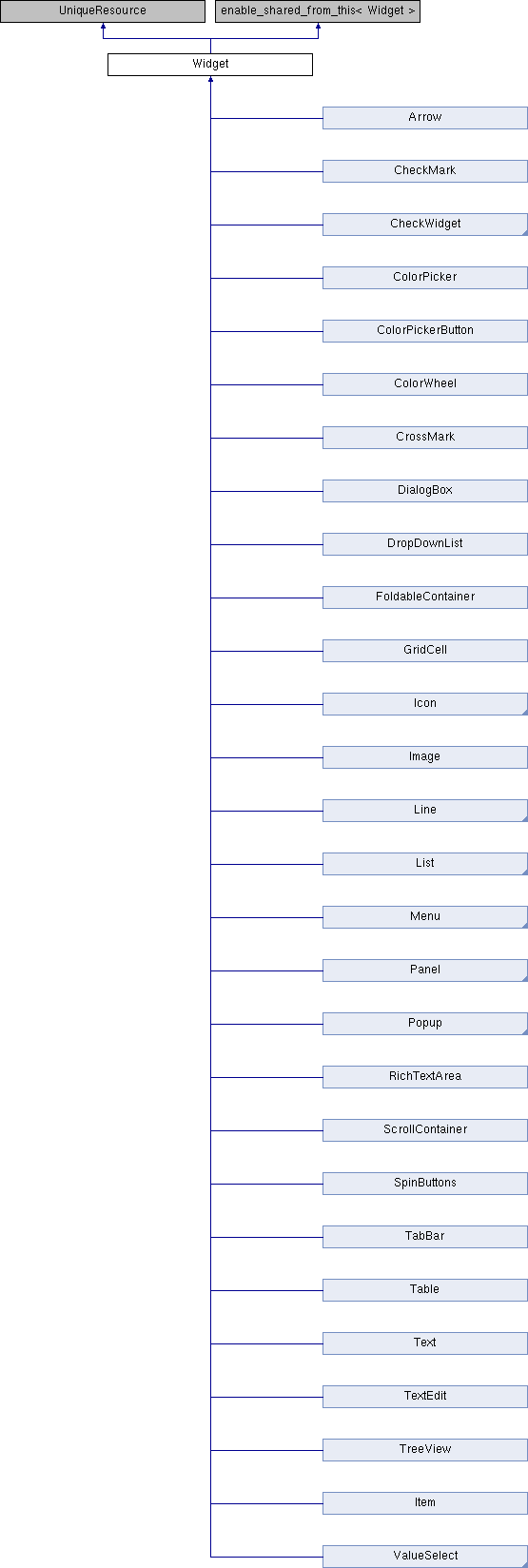

Inheritance diagram for Widget:

Public Types
enum	Type { WIDGET, PANEL, BOX, LINE, FRAME, BUTTON, TOGGLEBUTTON, RADIOBUTTON, CHECKBOX, CHECKMARK, CROSSMARK, ARROW, TEXT, TEXTEDIT, RICHTEXTAREA, SCROLLBAR, SLIDER, COLORSLIDER, COLORWHEEL, KNOB, TREEVIEW, IMAGE, POPUP, LIST, LISTBOX, SELECTION, PROGRESSBAR, SCROLLCONTAINER, MENU, MENUPANEL, MENUBOX, TABBAR, TABCONTAINER, DIALOG, FOLDABLECONTAINER, COLORPICKER, COLORPICKERBUTTON, SPINBOX, SPINBUTTONS, ICONIMAGE, ICONSVG, DROPDOWNLIST, TOOLTIP, GRIDCELL, GRID, TABLE }

Public Member Functions
	Widget (Type type=WIDGET)

	~Widget () override

Type	getType () const

bool	isVisible () const

void	setVisible (bool show=true)

bool	isEnabled () const

void	setEnabled (bool isEnabled=true)

virtual void	setPos (float x, float y)

float	getWidth () const

float	getHeight () const

float	getRequestedWidth () const

float	getRequestedHeight () const

virtual void	setSize (float width, float height)

void	setWidth (const float width)

void	setHeight (const float height)

const Rect &	getRect () const

void	setRect (float x, float y, float width, float height)

void	setRect (const Rect &rect)

float	getAspectRatio () const

Alignment	getAlignment () const

void	setAlignment (Alignment alignment)

std::shared_ptr< Font >	getFont () const

void	setFont (const std::shared_ptr< Font > &font)

float	getFontScale () const

virtual void	setFontScale (float fontScale)

bool	isFocused () const

Widget *	getParent () const

void	setOverlap (const bool overlap)

template<typename T , typename... Args>
std::shared_ptr< T >	create (const std::string &resource, const Alignment alignment, Args &&...args)

template<typename T , typename... Args>
std::shared_ptr< T >	create (const Alignment alignment, Args &&...args)

template<typename T >
std::shared_ptr< T >	add (std::shared_ptr< T > child, const Alignment alignment=Alignment::NONE, const std::string &resource="", const bool overlap=false)

template<typename T >
std::shared_ptr< T >	addPopup (std::shared_ptr< T > child, const std::string &resource="")

template<typename T >
std::shared_ptr< T >	addAfter (std::shared_ptr< T > child, const std::shared_ptr< Widget > &after, const Alignment alignment, const std::string &resource="", const bool overlap=false)

virtual void	remove (const std::shared_ptr< Widget > &child)

virtual void	removeAll ()

void	setPadding (float padding)

float	getPadding () const

float	getVBorder () const

float	getHBorder () const

void	setVBorder (float size)

void	setHBorder (float size)

bool	isDrawBackground () const

void	setDrawBackground (bool drawBackground)

bool	isPushed () const

bool	isPointed () const

bool	isFreezed () const

bool	isRedrawOnMouseEvent () const

bool	isOverlapping () const

Rect	getChildrenRect () const

void	setFreezed (const bool f)

void	setPushed (const bool p)

void	refresh ()

void	setResource (std::shared_ptr< UIResource > res)

uint32	getGroupIndex () const

void	setGroupIndex (int32 index)

template<typename T >
T	getUserData () const

template<typename T >
std::shared_ptr< T >	getPointerUserData () const

const std::any &	getUserData () const

void	setUserData (const std::any &data)

float	getTransparency () const

void	setTransparency (float alpha)

void	resizeChildren ()

float	getChildrenOffsetX () const

float	getChildrenOffsetY () const

void	setChildrenOffset (float x, float y)

std::shared_ptr< Widget >	setFocus (bool focus=true)

virtual void	onAttach ()

virtual void	onDetach ()

virtual void	onShow ()

virtual void	onHide ()

virtual void	onResize ()

virtual void	onMove ()

virtual bool	onKeyDown (Key key)

virtual bool	onTextInput (const std::string &text)

virtual bool	onKeyUp (Key key)

virtual bool	onMouseDown (MouseButton button, float x, float y)

virtual bool	onMouseUp (MouseButton button, float x, float y)

virtual bool	onMouseMove (uint32 buttonsState, float x, float y)

virtual void	onMouseLeave ()

virtual void	onDisable ()

virtual void	onEnable ()

virtual void	onGotFocus ()

virtual void	onLostFocus ()

bool	getConsumeMouseEvent () const

void	setConsumeMouseEvent (const bool consumeMouseEvent)

const std::list< std::shared_ptr< Widget > > &	getChildren () const

bool	hasChildren () const

void	subscribe (const event_type &type, unique_id id, EventHandlerCallback callback)

void	subscribe (const event_type &type, EventHandlerCallback callback)

void	unsubscribe (unique_id id)

bool	isAttached () const

Window &	getWindow () const

Style &	getStyle () const

Vector2DRenderer &	getRenderer () const

RenderingWindow &	getRenderingWindow () const

WindowManager &	getWindowManager () const

Protected Attributes
const Type	type

Rect	rect

float	requestedWidth {0}

float	requestedHeight {0}

float	hborder {0}

float	vborder {0}

float	padding {0}

bool	consumeMouseEvent {false}

bool	overlap {false}

bool	focused {false}

bool	allowFocus {false}

bool	allowChildren {true}

bool	drawBackground {true}

bool	moveChildrenOnPush {false}

bool	scrollChildren {false}

bool	skipInvisibleChildren {false}

bool	redrawOnMouseEvent {false}

bool	redrawOnMouseMove {false}

float	transparency {1.0f}

Widget *	parent {nullptr}

Alignment	alignment {Alignment::NONE}

std::shared_ptr< UIResource >	resource

std::list< std::shared_ptr< Widget > >	children

bool	mouseMoveOnFocus {false}

float	childrenOffsetX {0}

float	childrenOffsetY {0}

Member Enumeration Documentation

enum Type

Widget type enumeration.

Enum Values	Documentation
WIDGET	transparent widget
PANEL	rectangular widget with only a background
BOX	rectangular widget with a border and a background
LINE	A horizontal or vertical line
FRAME	A box with a title
BUTTON	A push button
TOGGLEBUTTON	A two states button
RADIOBUTTON	A two states button drawn with two circles
CHECKBOX	A two states box drawn with a check mark
CHECKMARK	A check mark
CROSSMARK	A cross mark
ARROW	An arrow head
TEXT	A single line of text
TEXTEDIT	An editable single line of text.
RICHTEXTAREA	A word-wrapped read-only text with BBCode markup
SCROLLBAR	A scroll bar. with min, max & pos
SLIDER	A value selected by dragging a grip along a track
COLORSLIDER	A value selected along a gradient of colors
COLORWHEEL	A disc selecting the hue & the saturation of a color
KNOB	A value selected by rotating a disc
TREEVIEW	Tree of Widget.
IMAGE	2D Image
POPUP	popup panel at fixed (x, y) coordinates, drawn on top of siblings
LIST	A list of widgets (abstract container)
LISTBOX	A scrollable list with a selection highlight
SELECTION	Selection highlight rectangle (internal to LISTBOX)
PROGRESSBAR	A progress bar with min, max & value
SCROLLCONTAINER	A scrollable container (horizontal & vertical)
MENU	A vertical list of text items separated in groups
MENUPANEL	A menu with a background panel
MENUBOX	A menu with a background box
TABBAR	A horizontal bar of tabs
TABCONTAINER	A container displaying one widget at a time, selected with a bar of tabs
DIALOG	A modal dialog box centered above its parent
FOLDABLECONTAINER	A container folding & unfolding its content with a clickable title bar
COLORPICKER	A color selector with one slider per component
COLORPICKERBUTTON	A button displaying a color, opening a dialog to change it
SPINBOX	A numeric value with two buttons incrementing & decrementing it
SPINBUTTONS	A column of two buttons incrementing & decrementing a value
ICONIMAGE	A 2D image fitted into the widget rectangle
ICONSVG	An SVG shape fitted into the widget rectangle
DROPDOWNLIST	A button displaying the selected item of a list, opening a popup list
TOOLTIP	A popup displaying a short help text near a position
GRIDCELL	A cell of a Grid
GRID	A grid of GridCell with resizable rows and columns and spanning cells
TABLE	A Grid with sortable and resizable column headers

Constructor & Destructor Documentation

Widget ( Type type = WIDGET )

Creates a widget of a particular type.

Parameters

type	The type of the widget.

~Widget ( )

override

Member Function Documentation

std::shared_ptr<T> add	(	std::shared_ptr< T >	child,
		const Alignment	alignment = `Alignment::NONE`,
		const std::string &	resource = `""`,
		const bool	overlap = `false`
	)

inline

Adds a child widget.

Children widgets will be destroyed on parent destruction.

Template Parameters

T	The type of the widget to add.

Parameters

child	Child widget to add.
alignment	Placement alignment.
resource	Resource string.
overlap	Overlap widget on top of or under other widgets.

Returns: A shared pointer to the added widget.

std::shared_ptr<T> addAfter	(	std::shared_ptr< T >	child,
		const std::shared_ptr< Widget > &	after,
		const Alignment	alignment,
		const std::string &	resource = `""`,
		const bool	overlap = `false`
	)

inline

Adds a child widget just after another child, instead of at the end.

Template Parameters

T	The type of the widget to add.

Parameters

child	Child widget to add.
after	Child widget to add it after, nullptr to add it first.
alignment	Placement alignment.
resource	Resource string.
overlap	Overlap widget on top of other widgets.

Returns: A shared pointer to the added widget.

std::shared_ptr<T> addPopup	(	std::shared_ptr< T >	child,
		const std::string &	resource = `""`
	)

inline

Adds a child popup widget.

Children widgets will be destroyed on parent destruction.

Template Parameters

T	The type of the widget to add.

Parameters

child	Child widget to add.
resource	Resource string.

Returns: A shared pointer to the added widget.

std::shared_ptr<T> create	(	const Alignment	alignment,
		Args &&...	args
	)

inline

Creates & adds a child widget.

Template Parameters

T	The type of the widget to create.
Args	The types of the arguments to pass to the widget constructor.

Parameters

alignment	The alignment of the child widget.
args	The arguments to pass to the widget constructor.

Returns: A shared pointer to the created widget.

std::shared_ptr<T> create	(	const std::string &	resource,
		const Alignment	alignment,
		Args &&...	args
	)

inline

Creates & adds a child widget using a resource string.

Template Parameters

T	The type of the widget to create.
Args	The types of the arguments to pass to the widget constructor.

Parameters

resource	The resource string defining the widget style or properties.
alignment	The alignment of the child widget.
args	The arguments to pass to the widget constructor.

Returns: A shared pointer to the created widget.

Alignment getAlignment ( ) const

Returns the current widget placement.

float getAspectRatio ( ) const

const std::list<std::shared_ptr<Widget> >& getChildren ( ) const

inline

Returns the list of direct children

float getChildrenOffsetX ( ) const

inline

Returns the horizontal children scroll offset (subtracted from child positions).

float getChildrenOffsetY ( ) const

inline

Returns the vertical children scroll offset (subtracted from child positions).

Rect getChildrenRect ( ) const

Returns the rectangle enclosing all children.

bool getConsumeMouseEvent ( ) const

inline

Returns true if the widget consumes mouse events (prevents propagation to parent).

std::shared_ptr<Font> getFont ( ) const

Returns the current font of the widget.

float getFontScale ( ) const

Returns the font scale.

uint32 getGroupIndex ( ) const

Returns the user defined group index.

float getHBorder ( ) const

Returns horizontal border size.

float getHeight ( ) const

inline

Returns the height of the widget, in pixels.

float getPadding ( ) const

Returns current children padding.

Widget* getParent ( ) const

inline

Returns the parent widget, or nullptr.

std::shared_ptr<T> getPointerUserData ( ) const

inline

Returns the user data.

const Rect& getRect ( ) const

Returns the size & the position of the widget.

Vector2DRenderer& getRenderer ( ) const

RenderingWindow& getRenderingWindow ( ) const

float getRequestedHeight ( ) const

inline

Returns the height requested with setSize(), in pixels, before any layout adjustment, or the current height if no height was requested.

float getRequestedWidth ( ) const

inline

Returns the width requested with setSize(), in pixels, before any layout adjustment, or the current width if no width was requested.

Style& getStyle ( ) const

float getTransparency ( ) const

inline

Returns the transparency alpha value.

Type getType ( ) const

Returns the type of the widget.

T getUserData ( ) const

inline

Returns the user data.

const std::any& getUserData ( ) const

inline

Returns the user data, without casting.

float getVBorder ( ) const

Returns vertical border size.

float getWidth ( ) const

inline

Returns the width of the widget, in pixels.

Window& getWindow ( ) const

WindowManager& getWindowManager ( ) const

bool hasChildren ( ) const

inline

bool isAttached ( ) const

inline

bool isDrawBackground ( ) const

Returns false if the background is transparent.

bool isEnabled ( ) const

Returns true if the widget is reactive to user action (mouse & keyboard).

bool isFocused ( ) const

Returns true if the widget has keyboard focus.

bool isFreezed ( ) const

Returns true if the widget is freezed (not responding to events).

bool isOverlapping ( ) const

inline

Returns true if the widget is overlapping other widgets.

bool isPointed ( ) const

Returns true if the widget is currently pointed by the mouse.

bool isPushed ( ) const

Returns true if the widget is currently pushed (e.g. mouse button down).

bool isRedrawOnMouseEvent ( ) const

Returns true if the widget should redraw on mouse events.

bool isVisible ( ) const

Returns true if the widget is visible.

virtual void onAttach ( )

inlinevirtual

Event called after Widget have been added to another widget or a window

Reimplemented in lysa::ui::Tooltip::onAttach()

virtual void onDetach ( )

inlinevirtual

Event called before Widget is detached from its parent.

Reimplemented in lysa::ui::Table::onDetach(), lysa::ui::DropDownList::onDetach()

virtual void onDisable ( )

inlinevirtual

virtual void onEnable ( )

inlinevirtual

virtual void onGotFocus ( )

inlinevirtual

Event called when the Window got the keyboard focus.

virtual void onHide ( )

inlinevirtual

Event called when (after) the Window manager need to hide the Window.

Reimplemented in lysa::ui::Table::onHide(), lysa::ui::DropDownList::onHide()

virtual bool onKeyDown ( Key key )

inlinevirtual

Event called when a key was pressed.

Parameters

key	The key pressed.

Returns: True if event was handled.

virtual bool onKeyUp ( Key key )

inlinevirtual

Event called when a key was released.

Parameters

key	The key released.

Returns: True if event was handled.

virtual void onLostFocus ( )

inlinevirtual

Event called when the Window lost the keyboard focus.

virtual bool onMouseDown	(	MouseButton	button,
		float	x,
		float	y
	)

inlinevirtual

Event called when a mouse button was pressed inside the Window.

Parameters

button	The mouse button.
x	Mouse X coordinate.
y	Mouse Y coordinate.

Returns: True if event was handled.

Reimplemented in lysa::ui::RichTextArea::onMouseDown()

virtual void onMouseLeave ( )

inlinevirtual

virtual bool onMouseMove	(	uint32	buttonsState,
		float	x,
		float	y
	)

inlinevirtual

Event called when the mouse is moved above the Window client area.

Parameters

buttonsState	State of mouse buttons.
x	Mouse X coordinate.
y	Mouse Y coordinate.

Returns: True if event was handled.

virtual bool onMouseUp	(	MouseButton	button,
		float	x,
		float	y
	)

inlinevirtual

Event called when a mouse button was released inside the Window.

Parameters

button	The mouse button.
x	Mouse X coordinate.
y	Mouse Y coordinate.

Returns: True if event was handled.

Reimplemented in lysa::ui::RichTextArea::onMouseUp()

virtual void onMove ( )

inlinevirtual

Event called after a position change.

virtual void onResize ( )

inlinevirtual

Event called after a size change.

Reimplemented in lysa::ui::Table::onResize(), lysa::ui::Grid::onResize(), lysa::ui::RichTextArea::onResize()

virtual void onShow ( )

inlinevirtual

Event called when (before) the Window manager need to show the Window.

virtual bool onTextInput ( const std::string & text )

inlinevirtual

Event called on user input

void refresh ( )

Force a refresh of the entire widget.

virtual void remove ( const std::shared_ptr< Widget > & child )

virtual

Removes a child widget.

virtual void removeAll ( )

virtual

Removes all children widgets recursively.

void resizeChildren ( )

Resizes children widgets.

void setAlignment ( Alignment alignment )

Sets the widget placement.

Calling this method involves redrawing the parent widget & resizing all the children widgets.

void setChildrenOffset	(	float	x,
		float	y
	)

Sets the children scroll offset. Children are laid out by resizeChildren() starting from the client rect minus this offset, enabling scrollable content. Default is (0, 0): no effect.

void setConsumeMouseEvent ( const bool consumeMouseEvent )

inline

Sets whether mouse events are consumed by this widget (preventing propagation to parent).

void setDrawBackground ( bool drawBackground )

Sets whether to draw the widget background.

void setEnabled ( bool isEnabled = true )

Enables or disables widget reactions to input events.

std::shared_ptr<Widget> setFocus ( bool focus = true )

Requests keyboard focus for this widget.

Parameters

focus True to request focus, false to release it.

Returns: Shared pointer to this widget.

void setFont ( const std::shared_ptr< Font > & font )

Sets the current font of the widget.

virtual void setFontScale ( float fontScale )

virtual

Sets the font scale.

Reimplemented in lysa::ui::Text::setFontScale(), lysa::ui::RichTextArea::setFontScale()

void setFreezed ( const bool f )

inline

Sets whether the widget is freezed.

void setGroupIndex ( int32 index )

Sets the user defined group index.

void setHBorder ( float size )

Sets horizontal border size.

void setHeight ( const float height )

inline

Resizes the widget height, in pixels.

void setOverlap ( const bool overlap )

inline

void setPadding ( float padding )

Changes children padding (space between children).

virtual void setPos	(	float	x,
		float	y
	)

virtual

Moves the widget to a particular position.

void setPushed ( const bool p )

inline

Sets whether the widget is pushed.

void setRect ( const Rect & rect )

Changes the size & position of the widget.

void setRect	(	float	x,
		float	y,
		float	width,
		float	height
	)

Changes the size & position of the widget.

void setResource ( std::shared_ptr< UIResource > res )

Changes widget resources.

virtual void setSize	(	float	width,
		float	height
	)

virtual

Resizes the widget, in pixels.

Reimplemented in lysa::ui::RichTextArea::setSize(), lysa::ui::Image::setSize(), lysa::ui::Text::setSize()

void setTransparency ( float alpha )

Changes the transparency alpha value.

void setUserData ( const std::any & data )

Sets user data.

void setVBorder ( float size )

Sets vertical border size.

void setVisible ( bool show = true )

Shows or hides the widget.

void setWidth ( const float width )

inline

Resizes the widget width, in pixels.

void subscribe	(	const event_type &	type,
		EventHandlerCallback	callback
	)

Subscribe to an event and register the subscriber for the auto-unsubscribe mechanism

void subscribe	(	const event_type &	type,
		unique_id	id,
		EventHandlerCallback	callback
	)

Subscribe to an event and register the subscriber for the auto-unsubscribe mechanism

void unsubscribe ( unique_id id )

Unsubscribe a registered event subscriber

Friends And Related Function Documentation

friend class Window

friend

Member Data Documentation

Alignment alignment {Alignment::NONE}

protected

bool allowChildren {true}

protected

bool allowFocus {false}

protected

std::list<std::shared_ptr<Widget> > children

protected

float childrenOffsetX {0}

protected

float childrenOffsetY {0}

protected

bool consumeMouseEvent {false}

protected

bool drawBackground {true}

protected

bool focused {false}

protected

float hborder {0}

protected

bool mouseMoveOnFocus {false}

protected

bool moveChildrenOnPush {false}

protected

bool overlap {false}

protected

float padding {0}

protected

Widget* parent {nullptr}

protected

Rect rect

protected

bool redrawOnMouseEvent {false}

protected

bool redrawOnMouseMove {false}

protected

float requestedHeight {0}

protected

float requestedWidth {0}

protected

std::shared_ptr<UIResource> resource

protected

bool scrollChildren {false}

protected

bool skipInvisibleChildren {false}

protected

float transparency {1.0f}

protected

const Type type

protected

float vborder {0}

protected

Detailed Description

Public Types

Public Member Functions

Protected Attributes

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
